PRM Woltmann Helix Style 6 Inch Water Meter For Totalization With Pulse - Flanged
PRM WOLTMANN HELIX STYLE 6 INCH WATER METER FOR TOTALIZATION AND RATE INDICATION WITH PULSE OUTPUT
PRM carries 3", 4", and 6" flanged Woltmann helix style water meter for industrial use.
Features:
- Pulse Output Components
- Hydrocarbon Resistant Seals
- Sealed Dry Dial for Clear Readings
Specifications:
- Woltmann helix style water meter
- Cast iron meter body, epoxy coated
- Accuracy class B
- 6 digit mechanical roller counter
- Reads in Gallons
- 6 INCH: Nominal Flow 1100 gpm, Max. Flow 1320 gpm
- Pulse: 100 gal/pulse
Accuracy:
Transitional Flow: ±5%
Nominal Flow: ±2%
Maximum Water Temperature: 86°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal
Materials:
Body: Cast Iron
Measuring Chamber: Polyethylene
Paint: Epoxy Coated
Seal: Viton
Not for use with Potable Water

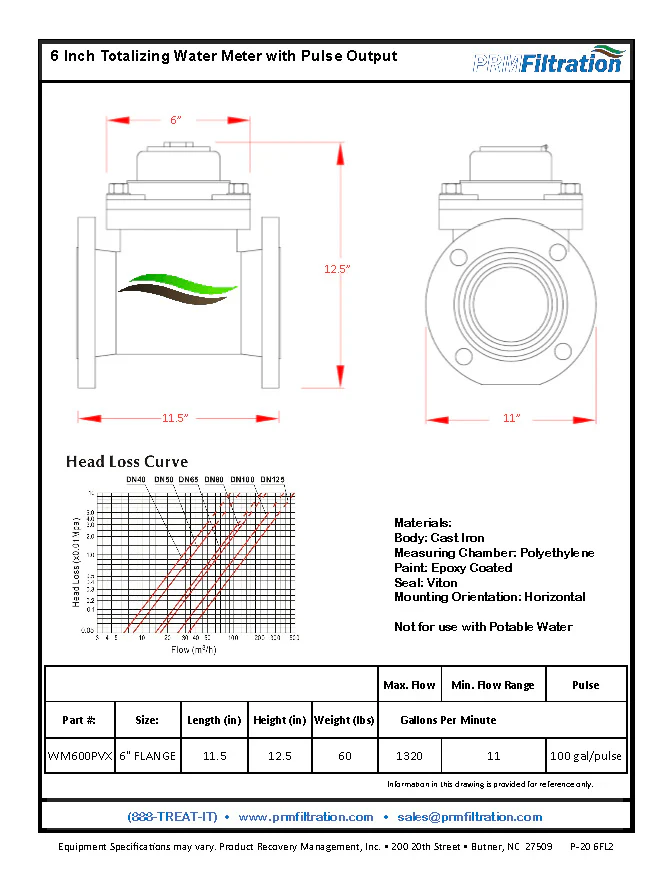

Wiring Diagram
PRM Water Meter Manual
Pair it with pre-wired junction box and digital counter
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
******************************************************************************************
