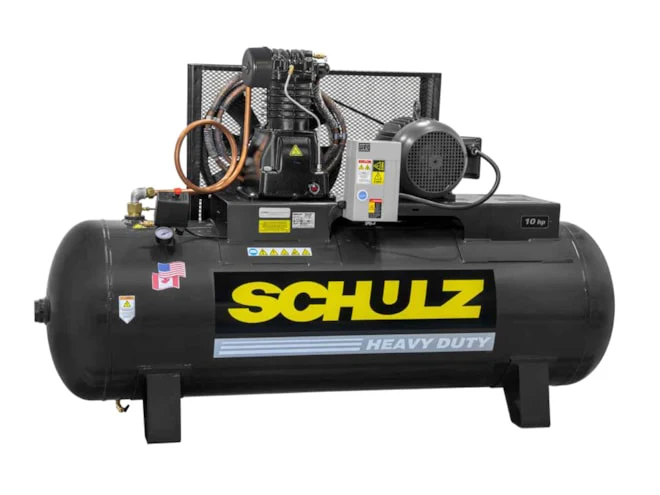

Schulz Compressors Heavy Duty V and W Series Two-Stage Piston Air Compressors
Schulz Compressors V and W Series Two-Stage Piston Air Compressor
Please refer to the table below for specs.
Cast iron construction with low RPM two piston in-line design.
The Schulz Compressors V Series Two-Stage Piston Air Compressor is designed for high cooling, efficiently generating compressed air with lower temperatures. The V Series is available in vertical or horizontal tank configurations, and operate in low RPMs as two stage models on cast iron blocks. Mounted and prewired magnetic starters ensure safe operation and ease of use, and the unit's safety valve and air receiver are ASME certified. The 10 to 20 HP models include wired TEFC motors. The pressure switch operates on an automatic start/stop, and a manual condensate drain assists in keeping the system clean.
Features:
- Tank mounted, vertical or horizontal orientation
- 80 or 20gal tank size
- 5 to 20 HP
- 20 to 80 CFM
- 175 PSI pressure rating
- 230/1/60 or 208-230/460/3/60 voltage
- Powder coated ASME receivers
- Enclosed metal belt guard
- Accessible belt for tension adjustment
- Balanced drive pulleys
- Oversized check valves
- Pressure gauge
| Item # | Model |
HP/PH | Motor/ Engine |
Pump | CFM* | Tank Style | gal | lbs. |
| 932.9339-0 | 580VV20X-1 | 5/1 | 4P | MSV-20MAX | 15.1 | Vertical | 80 | 480 |
|
932.9340-0 |
580VV20X-3 |
5/3 | 2P | MSV-20MAX | 15.1 | Vertical | 80 | 450 |
|
932.9345-0 |
580HV20X-1 |
5/1 | 4P | MSV-20MAX | 15.1 | Horizontal | 80 | 524 |
|
932.9346-0 |
580HV20X-3 | 5/3 | 2P | MSV-20MAX | 15.1 | Horizontal | 80 | 479 |
|
932.9341-0 |
7580VV30X-1 |
7.5/1 | 4P | MSV-30MAX | 20.1 | Vertical | 80 | 584 |
|
932.9342-0 |
7580VV30X-3 |
7.5/3 | 2P | MSV-30MAX | 20.1 | Vertical | 80 |
565 |
|
932.9347-0 |
7580HV30X-1 |
7.5/1 | 2P | MSV-30MAX | 20.1 |
Horizontal | 80 |
625 |
| 932.9348-0 | 7580HV30X-3 | 7.5/3 | 2P | MSV-30MAX | 20.1 | Horizontal | 80 | 553 |
| 932.9344-0 | 10120HW40X-3 | 10/3 | 2P | MSV-40MAX | 25.9 | Horizontal | 120 | 836 |
|
932.9369-0 |
10120VW40X-3 | 10/3 | 2P | MSW-40MAX | 25.9 | Vertical | 120 | 840 |
|
932.9337-0 |
15120HW60X-3 | 15/3 | 2P | MSW-60MAX | 45 | Horizontal | 120 | 936 |
|
932.9368-0 |
15120VW60X-3 | 15/3 | 2P | MSW-60MAX | 45 | Vertical | 120 | 938 |
| 932.9338-0 | 20120HWV80X-3 | 20/3 | 2P | MSWV-80MAX | 58.4 | Horizontal | 120 | 1083 |
*at 175 PSI
