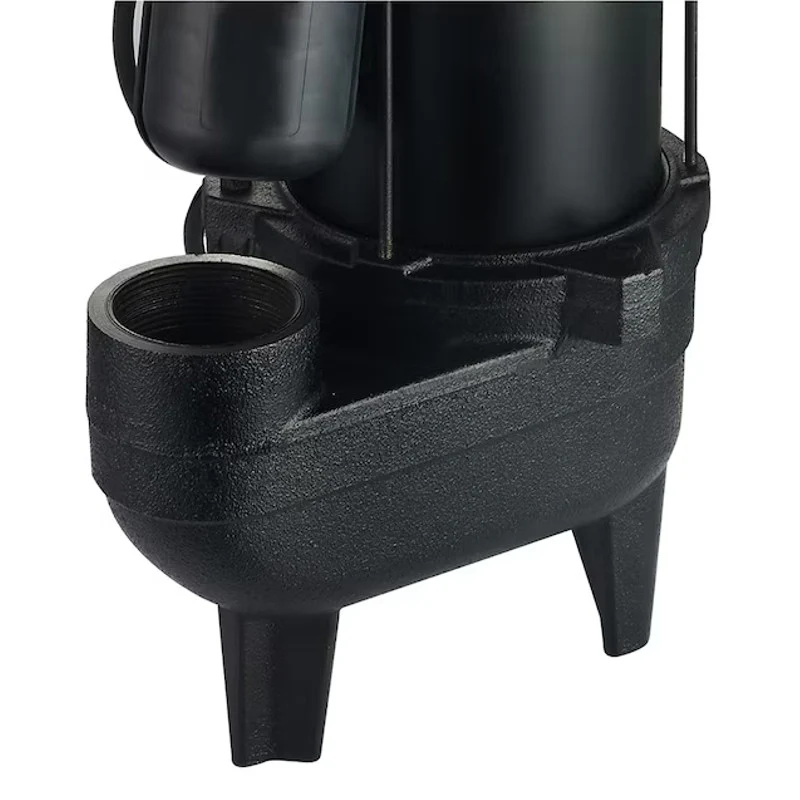

PRM Cast Iron Submersible Sewage Pump, 1/2 HP, 120V/1ph

1/2HP Cast Iron Submersible Sewage Pump

• Durable cast iron construction.
• Plastic non-clog vortex impeller.
• Oil-filled permanent split capacitor motor and built-in automatic thermal overload protector.
• Works with a 10’ piggyback tethered float switch for automatic operation.
• Suitable for applications with up to 2" diameter solids.
• Ideal for basements or below-grade installations.
• 2'' NPT discharge capable of handling up to 2" diameter solids.

Model	HP	Voltage/PH	Amp	Discharge NPT
PRMPUMPCISSP0501PH	1/2	120V/1	9.5A	2 Inch

GPH of water @Total Ft. of Head

					Max. Head Ft.
5 ft.	10 ft.	15 ft.	20 ft.	25 ft.	30 ft.
6400 GPH	5400 GPH	4400 GPH	3600 GPH	2700 GPH	-



Flow Curve

User Manual
