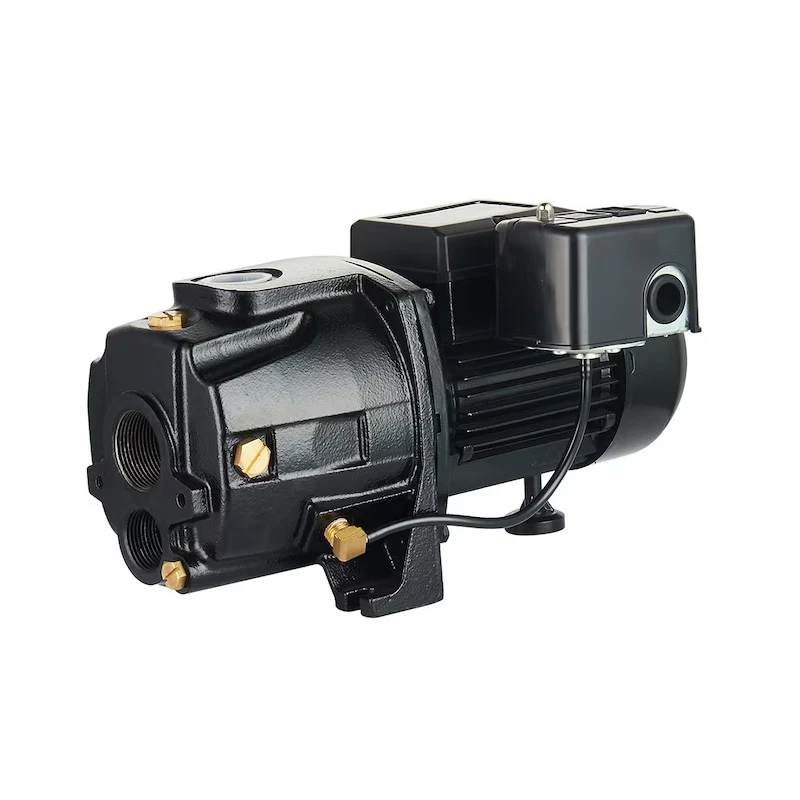

PRM Convertible Well Pump, 1/2 HP, 115/230V

1/2HP Convertible Jet Pump - 115/230V

Features and benefits:

• Durable cast iron volute
• Built-in automatic thermal overload protector
• Pressure switch is pre-set at 30-50 PSI for automatic operation
• Dual voltage (115V/230V) motor, factory set for 230V

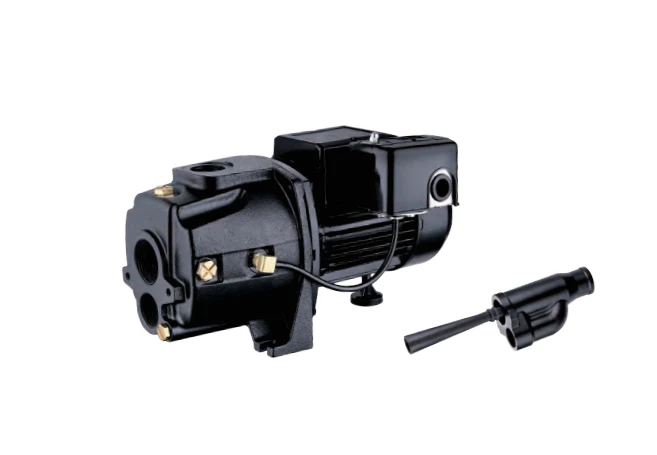

• Injector is included for using in deep well
• 1-1/4"NPT suction with 1"NPT discharge

Model	HP	Voltage	Amp	Discharge NPT
PRMPUMPCICWP0501PH	1/2	115/230V	8.8/4.4A	1 Inch



GPH of water @Total Ft. of Head

					Max. Head Ft.
5 ft.	35 ft.	70 ft.	100 ft.	130 ft.	128 ft.
1100 gph	950 gph	650 gph	200 gph	-	-

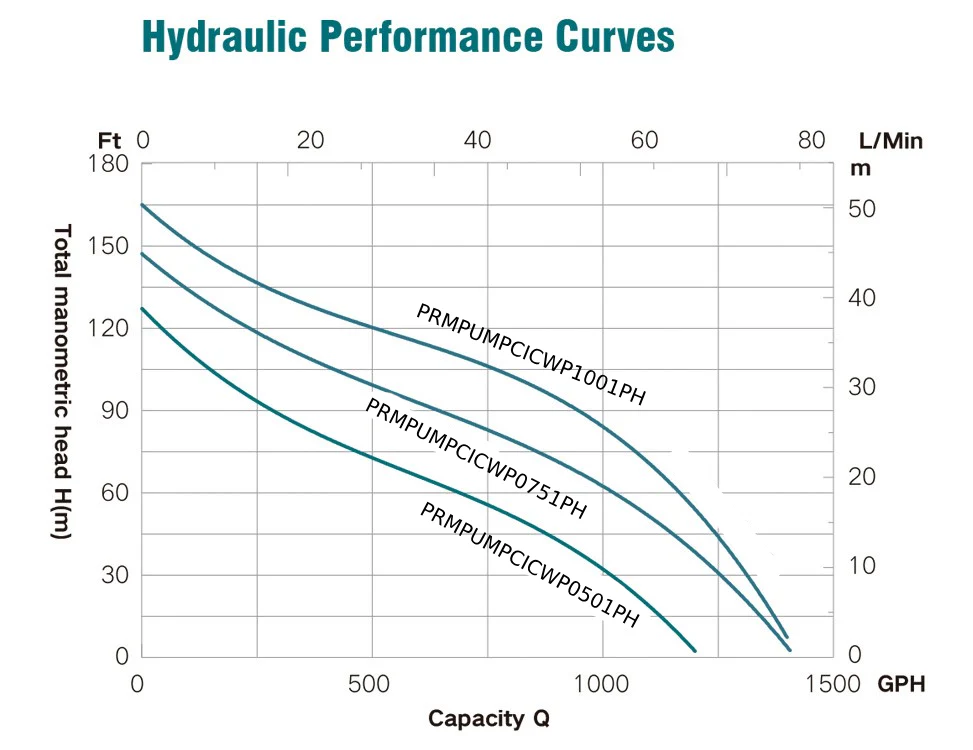

Flow Curve

User Manual
