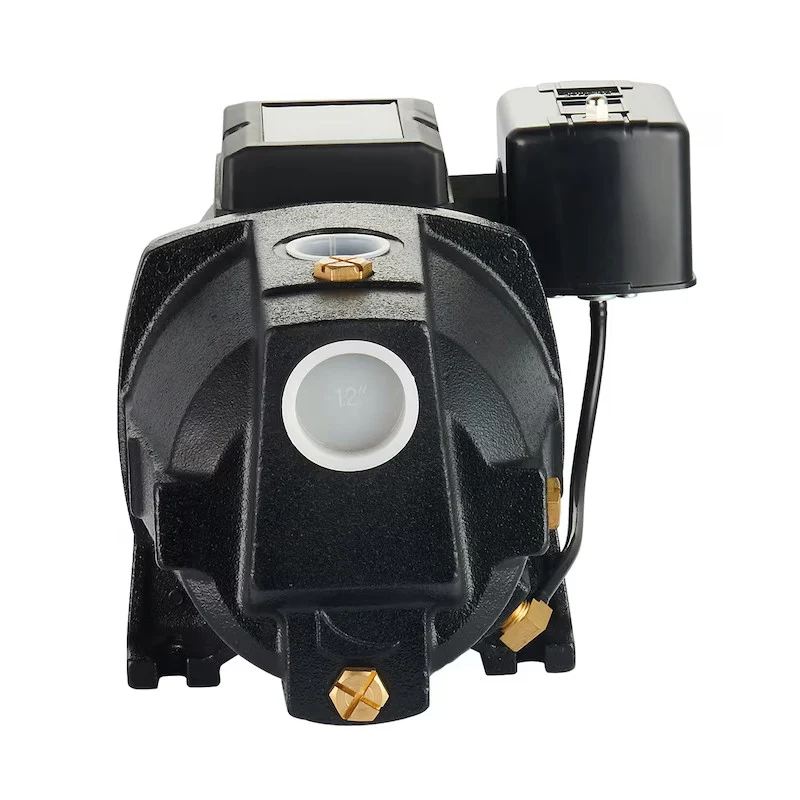

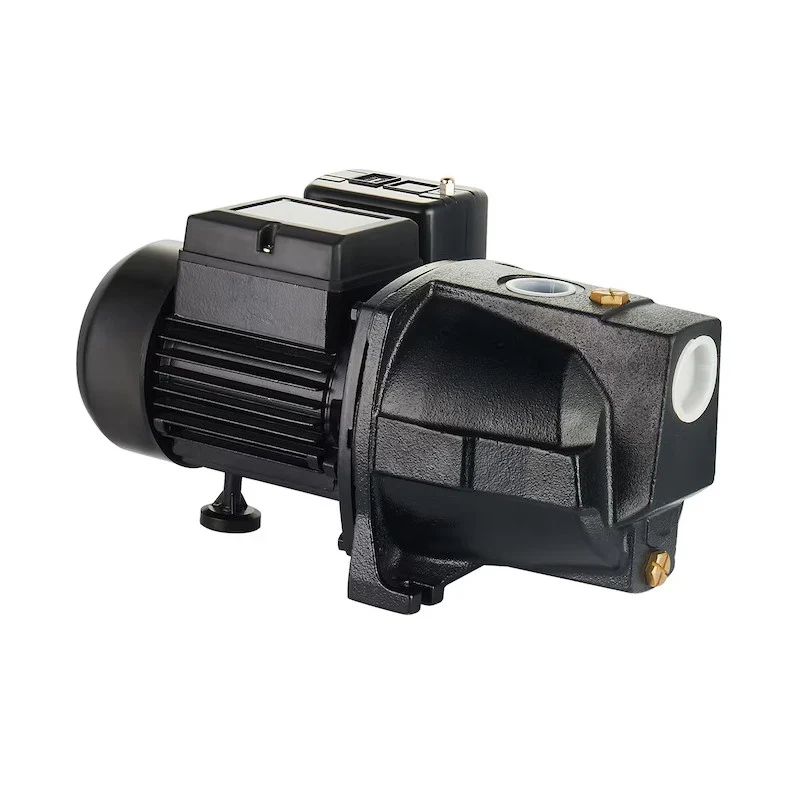

PRM Shallow Well Jet Pump, 1 HP, 115/230V

1HP Shallow Well Jet Pump - 115/230V

Features and benefits:

• Durable cast iron volute
• Built-in automatic thermal overload protector
• Pressure switch is pre-set at 30-50 PSI for automatic operation
• Dual voltage (115V/230V) motor, factory set for 230V
• For use on shallow well applications where wells are 25ft (7.6m) deep or less
• 1-1/4" NPT suction with 1" NPT discharge



Model	HP	Voltage	Amp	Discharge NPT
PRMPUMPCISWP1001PH	1	115/230V	9.6/4.8A	1 Inch



GPH of water @Total Ft. of Head

					Max. Head Ft.
5 ft.	35 ft.	70 ft.	100 ft.	130 ft.	164 ft.
1100 gph	870 gph	750 gph	540 gph	310 gph	-

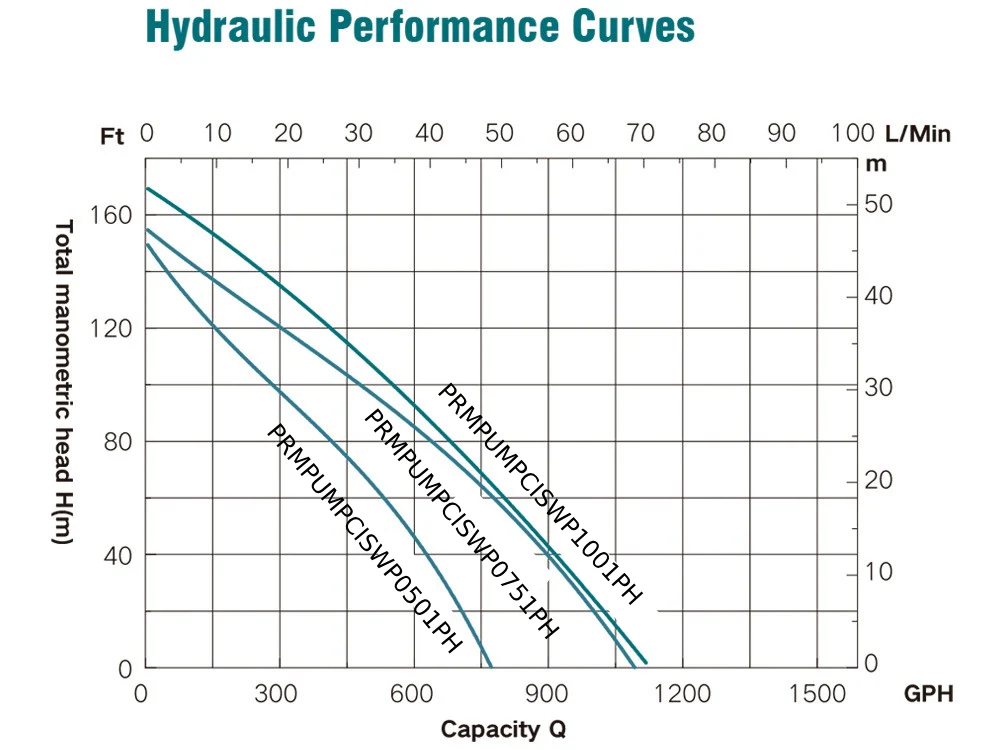

Flow Curve
User Manual
