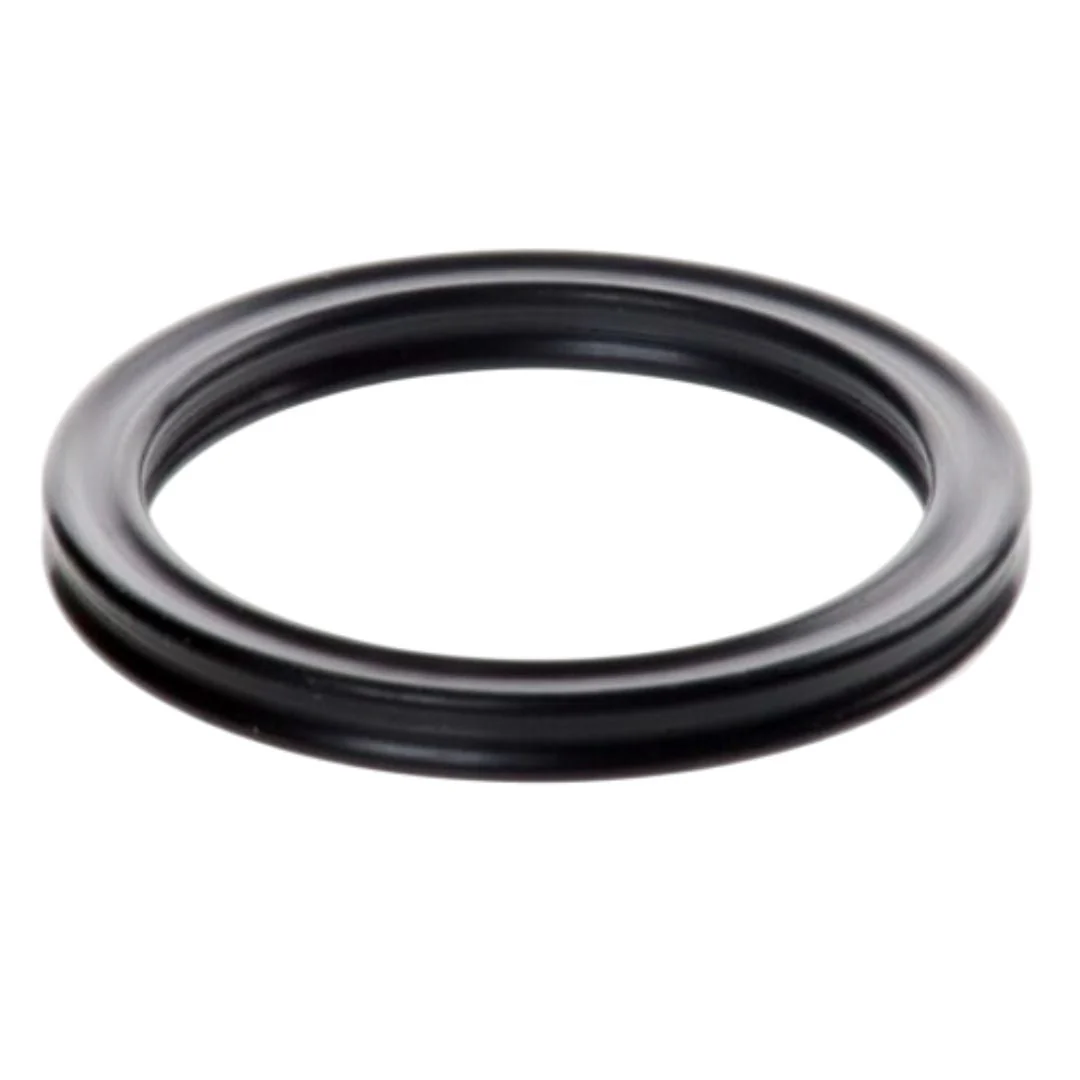

Global O-Ring AS568-008 Viton Quad/X-Ring - Black - 75 Durometer - Pack of 25

AS568-008 Viton Quad/X-Ring - Black - 75 Durometer

X-Rings have a sealing function doubling that of an O-ring and can be used in numerous static and dynamic sealing applications. Compared to a standard O-ring, the four-lobed x-ring profile maintains twice the sealing surface, requiring less squeeze to maintain an effective seal and thus yielding lower friction and prolonged seal life. The four-lobed design of x-rings produces a more secure seal to counteract spiral twisting, making x-rings an exceptional choice in rotary sealing applications.

Performs Well In: Hydrocarbon Automotive, Aviation Fluid; Reciprocating Engine Lubricating Oils (SE-SF Grade); Aliphatic Hydrocarbon Process Fluids; Aromatic Hydrocarbon Process Fluids; Aqueous Fluids (Water, Steam, Mineral Acids)



Specifications:

Material	Viton
Color	Black
Durometer	75
Size	008
CS (in)	0.07
ID (in)	0.176
OD (in)	0.316
CS (mm)	1.78
ID (mm)	4.47
OD (mm)	8.03
Compound	V75-B109
Minimum Temperature	-13°F (-25°C)
Maximum Temperature	482°F (250°C)
