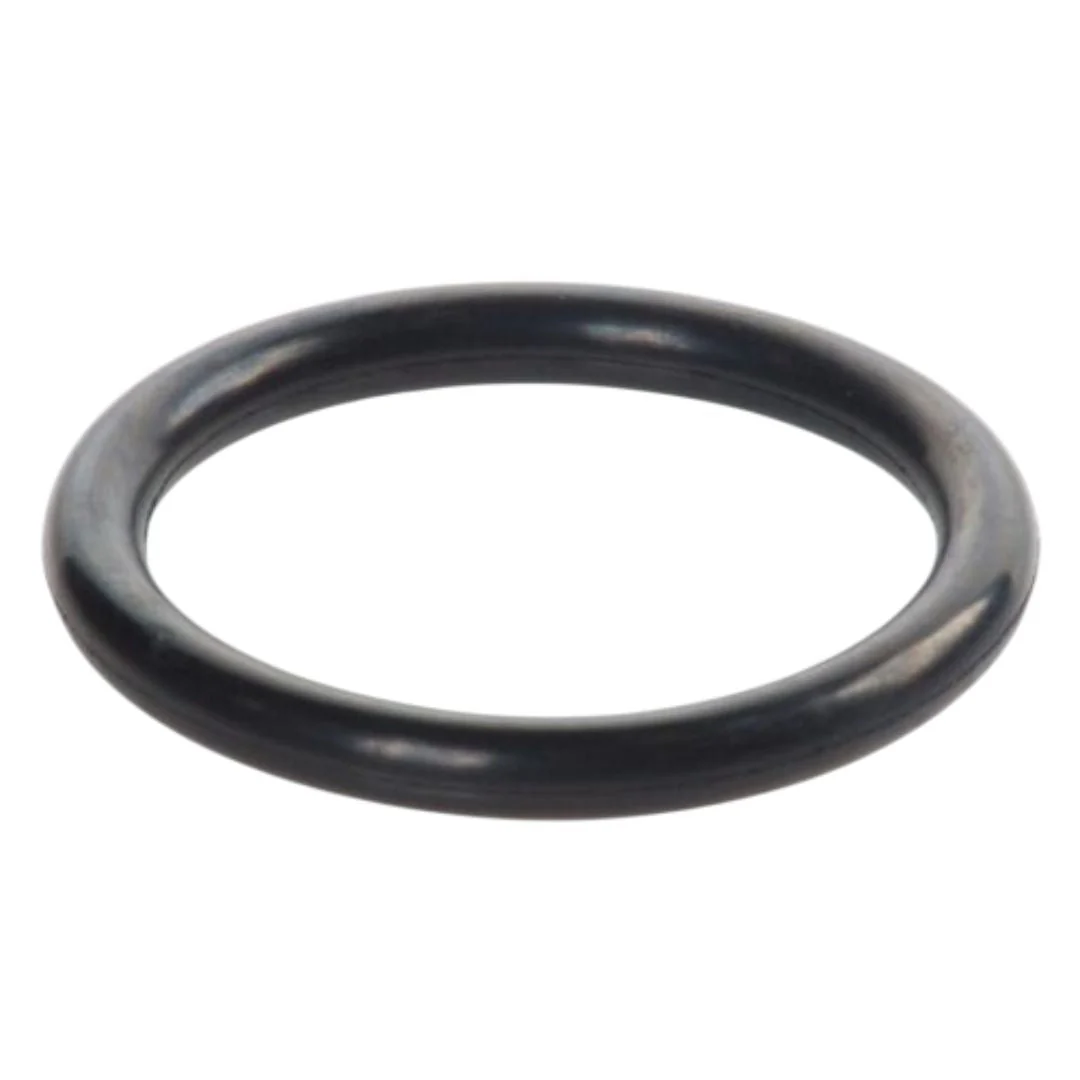

Global O-Ring AS568-011 EPDM O-Ring - Black - 70 Durometer - Pack of 250

AS568-011 EPDM O-Ring - Black - 70 Durometer

An O-ring is a round, mechanical gasket designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal interface. O-Rings are one of the most common types of seals because they’re inexpensive, reliable, and have simple mounting requirements.O-Rings are one of the most common types of seals because they’re inexpensive, reliable, and have simple mounting requirements.O-Rings are one of the most common types of seals because they’re inexpensive, reliable, and have simple mounting requirements. O-Rings may be used in static applications where little range of motion is required or in dynamic applications, like rotating pump shafts and hydraulic cylinder positions.

Performs Well In: Alcohols; Ketones; Dilute acids and alkalis; Silicone oils and greases; Steam up to 204.4ºC (400ºF); Water; Phosphate ester based hydraulic fluids; Ozone, aging, and weathering



Specifications:

Material	EPDM
Color	Black
Durometer	70
Size	114
CS (in)	0.103
ID (in)	0.612
OD (in)	0.818
CS (mm)	2.62
ID (mm)	15.54
OD (mm)	20.78
Compound	E70-C101
Minimum Temperature	-67°F (-55°C)
Maximum Temperature	257°F (125°C)
