Global O-Ring AS568-012 Silicone O-Ring - Red - 70 Durometer - Pack of 250

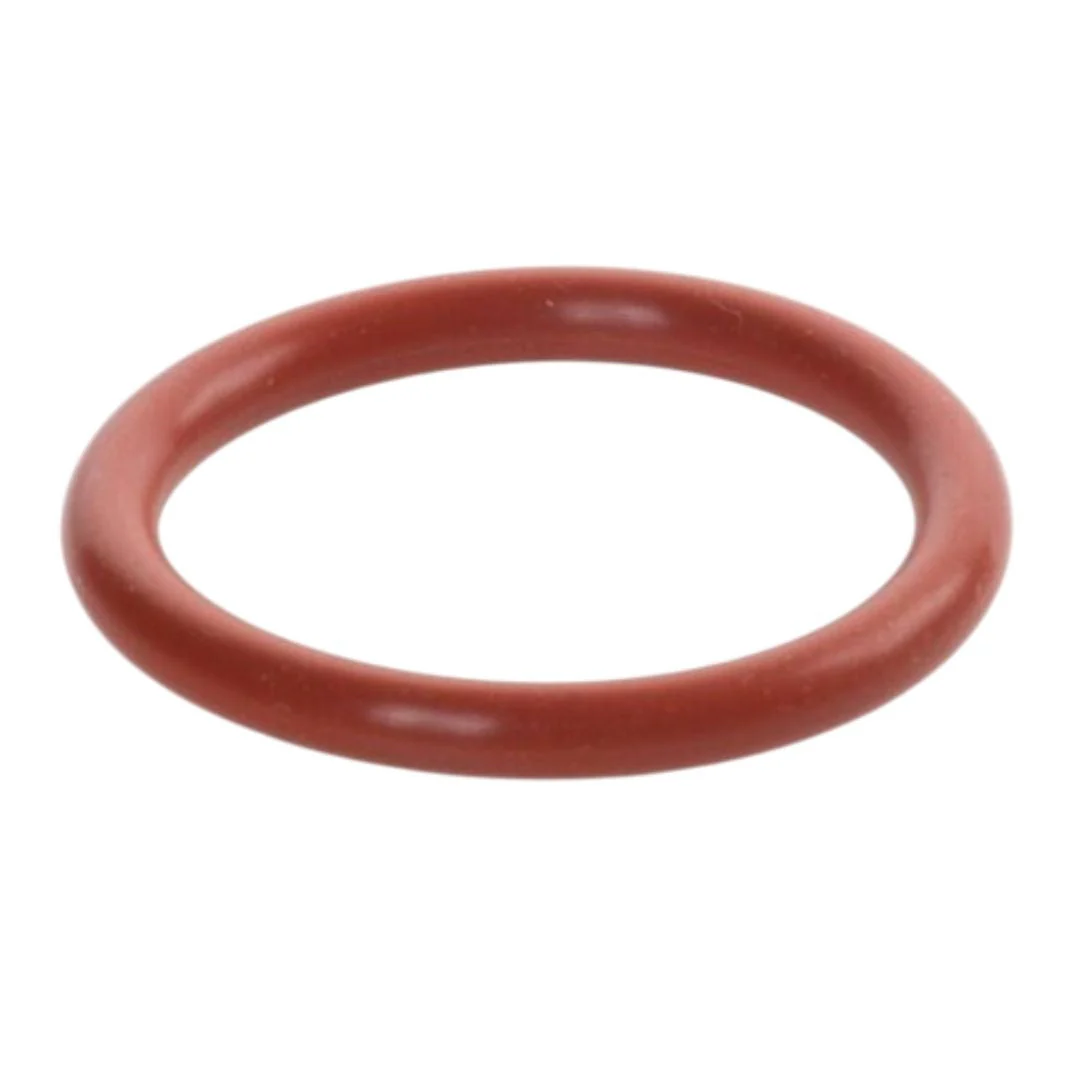

AS568-012 Silicone O-Ring - Red - 70 Durometer

An O-ring is a round, mechanical gasket designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal interface. O-Rings are one of the most common types of seals because they’re inexpensive, reliable, and have simple mounting requirements.O-Rings are one of the most common types of seals because they’re inexpensive, reliable, and have simple mounting requirements.O-Rings are one of the most common types of seals because they’re inexpensive, reliable, and have simple mounting requirements. O-Rings may be used in static applications where little range of motion is required or in dynamic applications, like rotating pump shafts and hydraulic cylinder positions.

Performs Well In: Engine and transmission oil (mineral oils); Diluted salt solution; Moderate water; Dry heat; Ozone and weather resistance



Specifications:

Material	Silicone
Color	Red
Durometer	70
Size	012
CS (in)	0.07
ID (in)	0.364
OD (in)	0.504
CS (mm)	1.78
ID (mm)	9.25
OD (mm)	12.81
Compound	S70-A601
Minimum Temperature	-67°F (-55°C)
Maximum Temperature	392°F (200°C)
