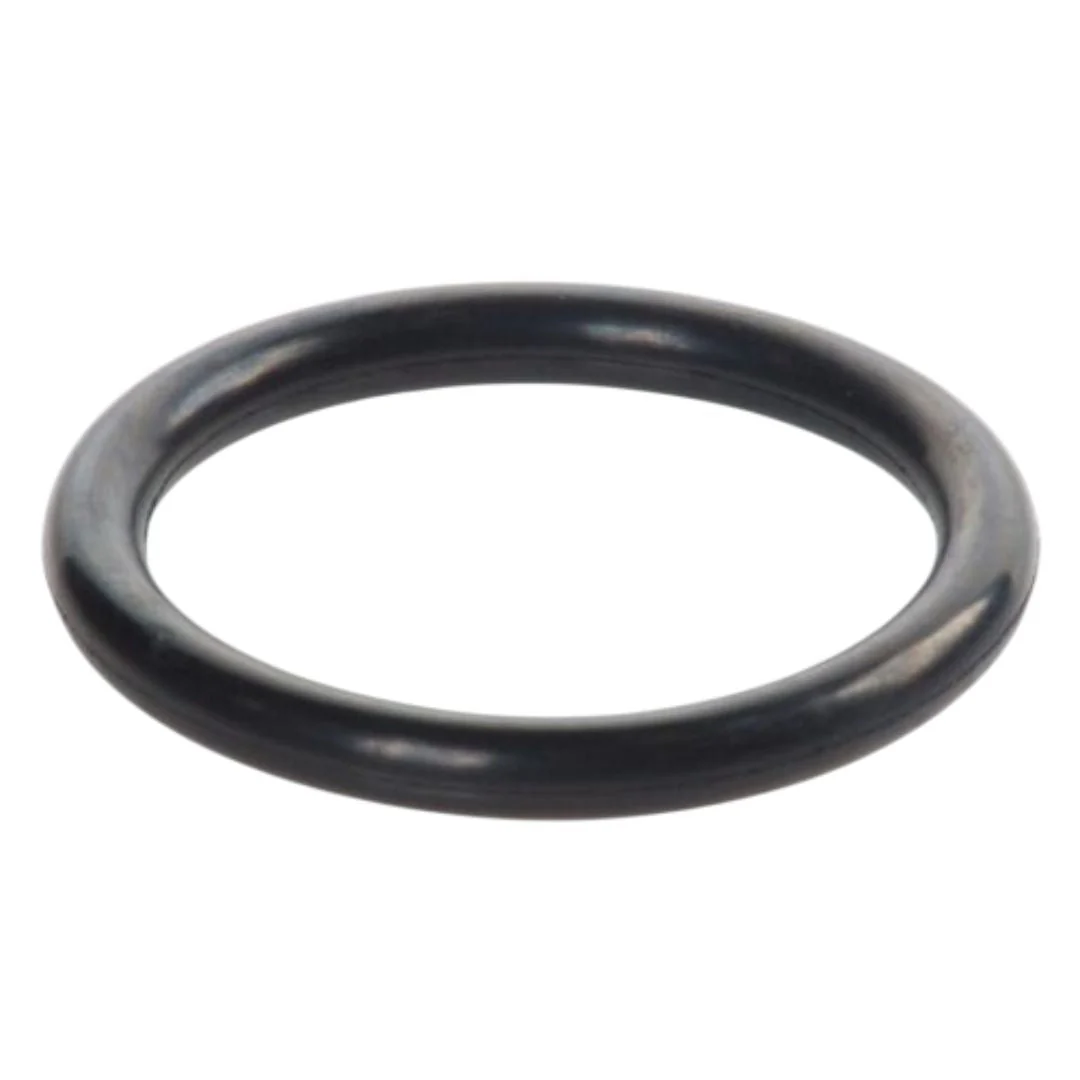

Global O-Ring AS568-127 Nitrile O-Ring - Black - 90 Durometer - Pack of 65

AS568-127 Nitrile O-Ring - Black - 90 Durometer

An O-ring is a round, mechanical gasket designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal interface. O-Rings are one of the most common types of seals because they’re inexpensive, reliable, and have simple mounting requirements.O-Rings are one of the most common types of seals because they’re inexpensive, reliable, and have simple mounting requirements.O-Rings are one of the most common types of seals because they’re inexpensive, reliable, and have simple mounting requirements. O-Rings may be used in static applications where little range of motion is required or in dynamic applications, like rotating pump shafts and hydraulic cylinder positions.

Performs Well In: Petroleum-based oils and fuels; Aliphatic hydrocarbons; Vegetable oils; Silicone oils and greases; Ethylene glycol; Dilute acids; Water up to 100ºC (121ºF)



Specifications:

Material	Nitrile
Color	Black
Durometer	90
Size	127
CS (in)	0.103
ID (in)	1.424
OD (in)	1.63
CS (mm)	2.62
ID (mm)	36.17
OD (mm)	41.41
Compound	N90-A101
Minimum Temperature	-22°F (-30°C)
Maximum Temperature	250°F (121°C)
