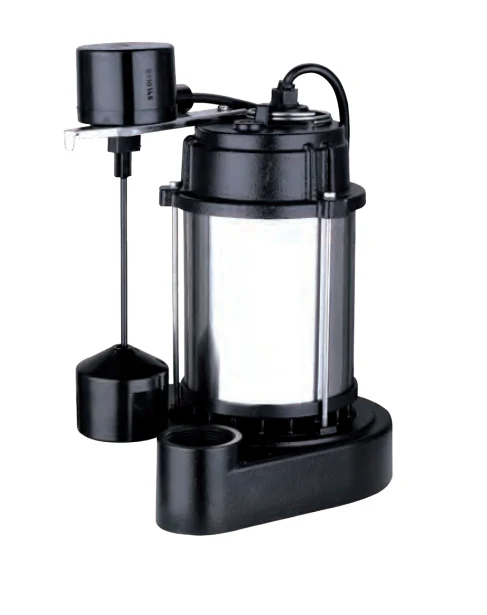

PRM 3/4 HP SS Submersible Sump Pump + SJE Vertical Switch, 115V, 1-Phase, 1-1/2in. NPT

3/4HP SS Submersible Sump Pump + SJE Vertical Switch

Features and benefits

• Top suction design helps eliminate air locks and filters debris
• Designed for reduced noise and maximum reliability
• 10’ Piggy back tethered or vertical float switch for automatic operation
• Easily replaces all tethered or vertical float switch pumps
• Cast iron base for long life durability and prevents pump from moving around in the pit
• Stainless steel motor shell with durable cast iron volute
• Oil-filled permanent split capacitor motor and built-in automatic thermal overload protector
• For use in 14'' diameter or larger sump basins
• 1-1/2'' discharge

Model	HP	Voltage	AMP	Oil filling capacity	Discharge NPT (in.)	Performance (GPH @ Height in Feet)					Max head (FT)
						7	10	15	20	25
PRMPUMPSSSP0331PHSV	1/3	115V	4.5A	800	1-1/2 in.	3300	2800	2000	750	-	22
PRMPUMPSSSP0501PHSV	1/2	115V	5.0A	800	1-1/2 in.	3830	3750	3050	2250	-	24.6
PRMPUMPSSSP0751PHSV	3/4	115V	7.0A	1000	1-1/2 in.	-	4360	4000	3450	2750	31.6
